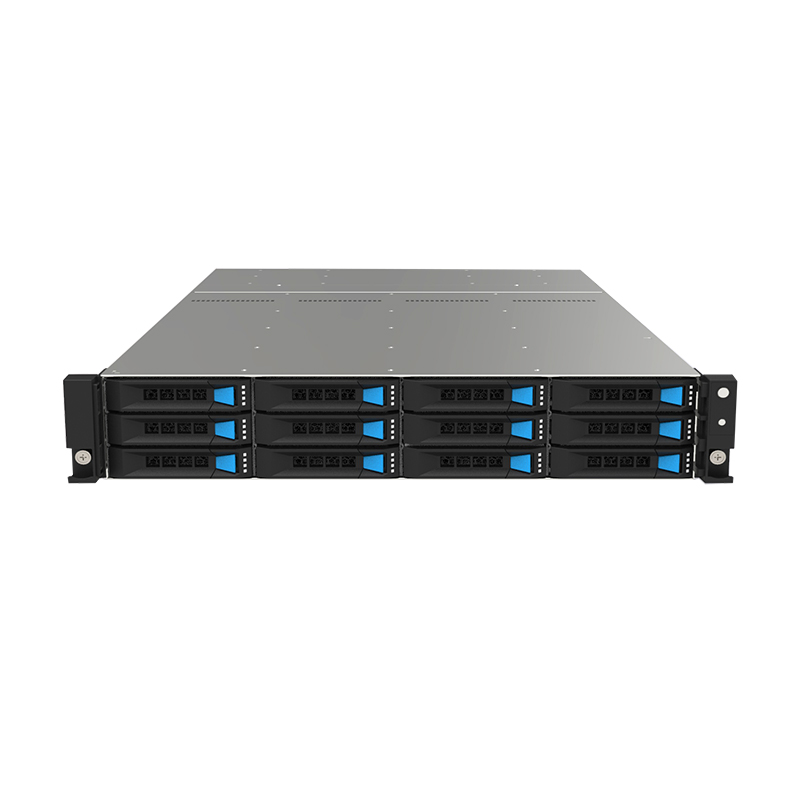

Enterprise-class Standard 2U 12-Bay Rack-mount .
Server Dual-socket Cascade Lake Platform Server,Supporting the 2nd Gen Intel® Xeon® Scalable Processor Series.

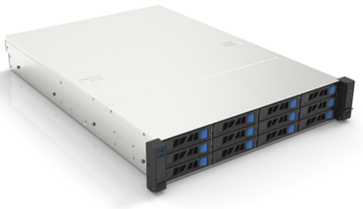

Supports 12 units of 2.5/3.5-inch hard disk storage (4 of which are NVMe-enabled)

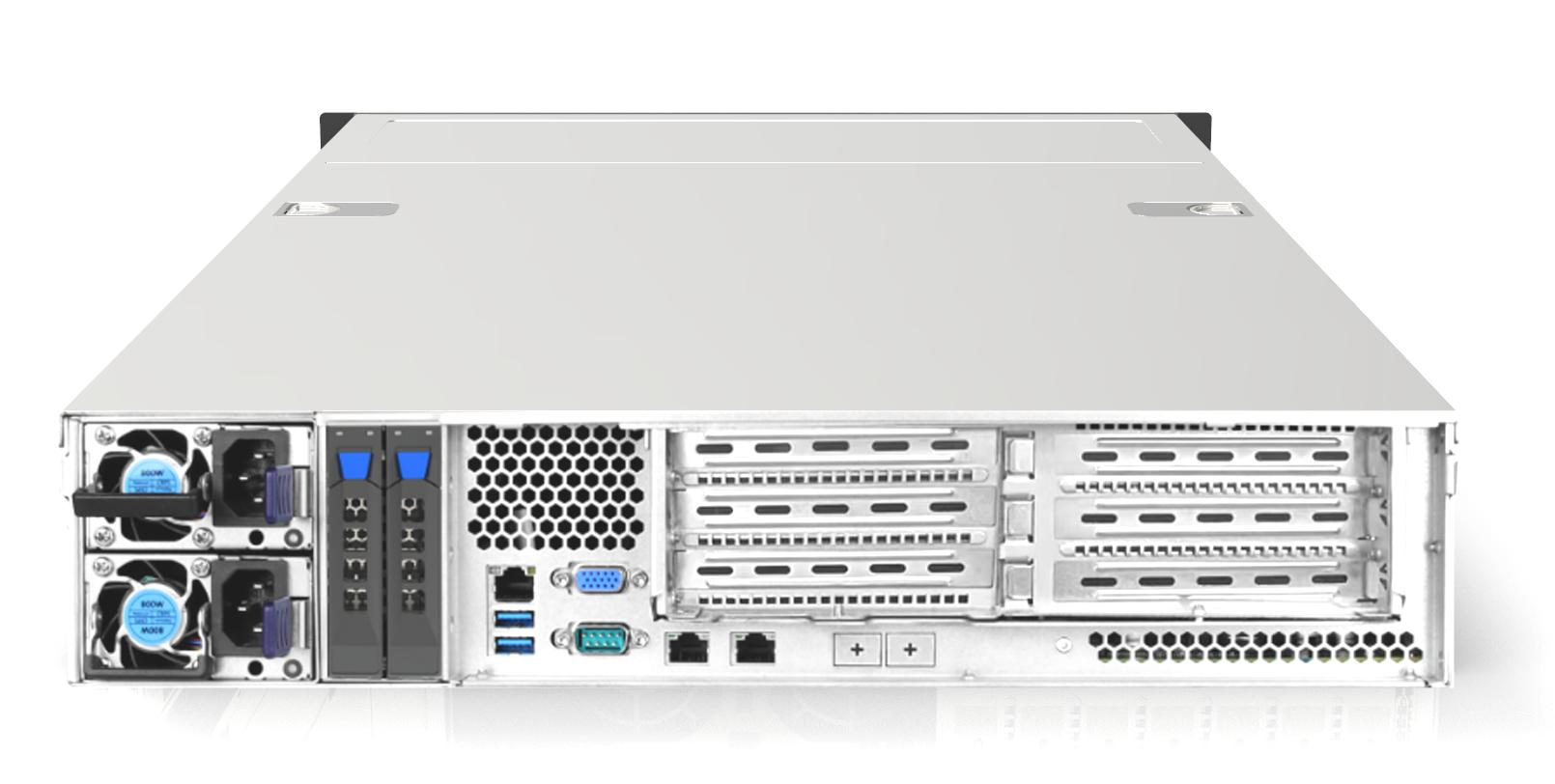

Supports rear 2-bay SATA/SAS/NVMe module
Supports 800W/1300W (1+1) redundant power supply
Customization & Remote Management

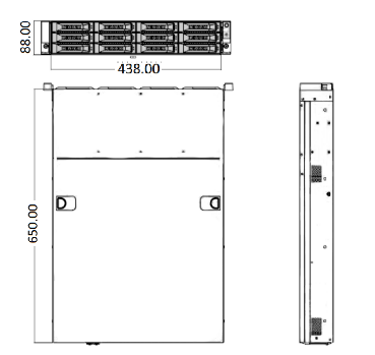

Chassis Dimensions
| Temperature |
Operating Temperature: -10° to 45°C；Storage Temperature: -40° to 70°C |
| Humidity |
Operating Humidity: 5% to 90% ； Non-Operating Humidity: 5% to 95% |
| PCI-E Expansion Slot |
1 x PCI-E3.0 X16+X8（Left Riser Card）， 1 x PCI-E3.0 X16+X8（Right Riser Card） |
| OCP Expansion Slot |
1 x OCP2.0（PCI-E3.0 X8） |
| BUTTON |
1× Power ON/OFF， 1× Reset |
| LED |
HHD/LAN1/LAN2 (Active)，Power LED，Alarm LED |
| USB3.0 |
2×USB3.0 |
| IPMI+USB3.0 |
1 × IPMI Management Port + 2 × USB 3.0 |
| VGA + COM |
1 x DB15 + DB9 |
| LAN |
2 × Standard RJ45 (10/100/1000Base-T) Interfaces |
| Network |
1 × RJ45，100/1000Base-T |
| Function |
ASPEED AST2400 BMC IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Network Type |
2-Port 1000Base-T，RJ45 output |
| Network Controller |
Intel I210AT |
| CPU |
2nd Gen Intel® Xeon® Scalable Processors ，Dual Socket LGA-3647 (Socket P) supported, CPU TDP supports Up to 205W TDP |
| System Bus |
Dual UPI up to 10.4 GT/s |
| Chipset |
Intel® C621 |
| System Disk |
1 x M.2（NVMe） |
| Drive Bay |
12 × Hot-swappable 2.5/3.5-inch HDDs (4 NVMe-enabled) + 2 × Rear 2.5-inch SATA/SAS/NVMe Drive Bays |
| Memory Capacity |
12 x DDR4 DIMM slots（6 channel） |
| Memory Type |
2933/2666/2400/2133MHz ECC 3DS DDR4 LRDIMM, RDIMM |
| DIMM Specification |
LRDIMM: 64GB, 128GB / RDIMM: 16GB，32GB,64GB, 128GB |
| Type |
2U Standard Chassis |
| Dimensions |
650 mm (D) × 438 mm (W) × 88 mm (H) |
| Weight |
Approx. 15 kg (excluding hard drives) |
| Type |
4 × 8038 Hot-swappable Fans |
| Rated Power |
800W/1300W (1+1) Redundant Power Supply |
| Input |
AC100-240V 50-60Hz，80PLUS Titanium Level |
