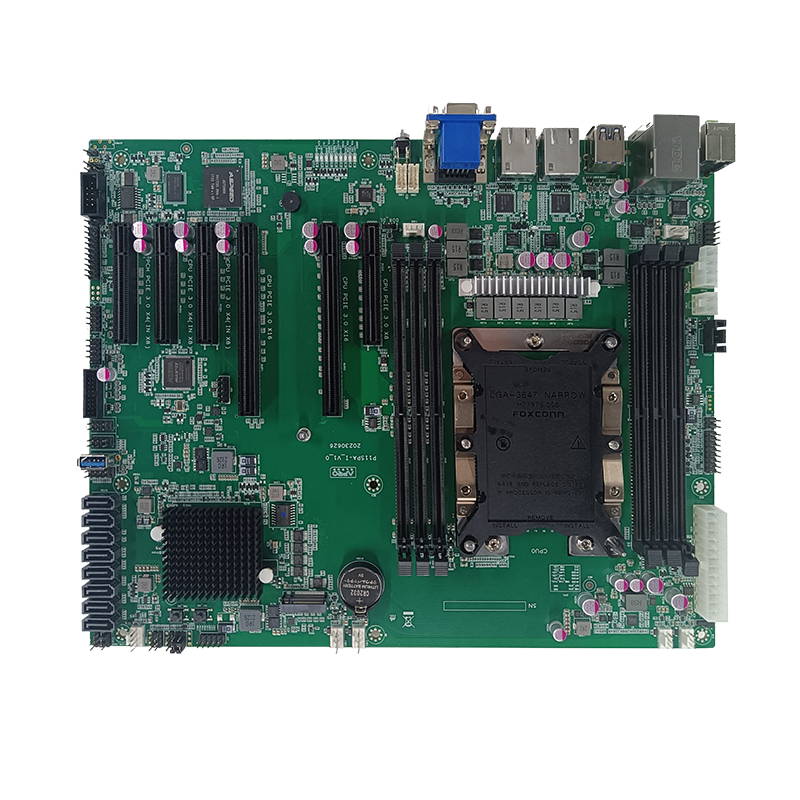

Single-CPU Purley Server Motherboard

P11SPA-I Single-CPU Server Motherboard is built on the Intel® Purley platform (equipped with Intel® PCH C621 chipset and LGA3647 CPU socket). It supports 1st/2nd Gen Intel® Xeon® Scalable Processors and 6-channel DDR4-2933 ECC RDIMM memory, delivering a cost-effective X86 motherboard solution with flexible I/O expansion capabilities.

Attachment Download
Product Description
Product Parameters
Functional Features

•Supports LGA3647 CPU socket and 2nd Gen Intel® Xeon® Scalable Processors.

• The chipset adopts Intel® PCH C621.• Compliant with ATX form factor, measuring 12" × 13" (305 × 244 mm).• Equipped with 6 DIMM slots featuring 6-channel architecture, supporting a maximum capacity of 768GB DDR4 2933MHz ECC RDIMM and LRDIMM modules.• The motherboard supports 2 × PCIe 3.0 x16 slots.• The motherboard supports 1 × M.2 (NVMe) port and 8 × SATA3 ports.• 2 × Gigabit Ethernet controllers are onboard.

Translation Notes

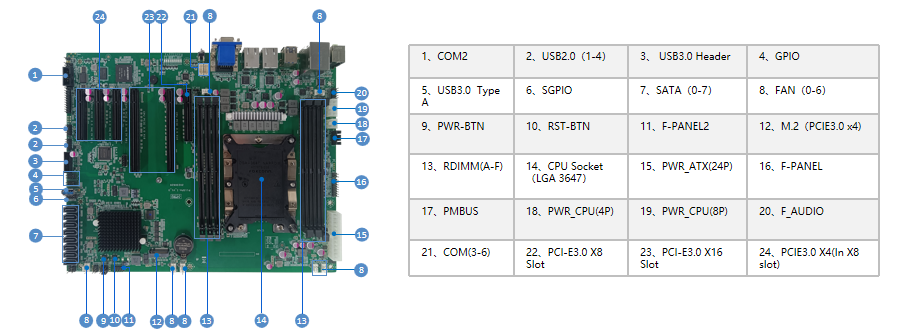

Introduction to Onboard Headers and Interfaces




Detailed Specifications of I/O Interfaces





Product Parameters
Display
VGA

1 X VGA
Graphics

AST2400
芯片组

Intel@ C621A

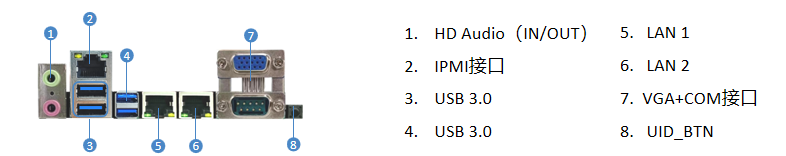

I/O Board
Audio

1 × HD Audio, Dual 3.5mm Jacks
USB3.0+IPMI

2 x USB3.0+RJ45(IPMI)
USB3.0

2 x USB3.0
RJ45

2 x RJ45
VGA+COM

1 x DB15 +DB9
UID_BTN

1 x UID_BTN（含LED）
Internal Interfaces
PCI-E3.0

1 x PCI-E3.0 X8，2 x PCI-E3.0 X16，3 x PCI-E3.0 X4（IN X8）
USB 2.0

4 x USB ( Header 2 x 5 2.54mm)
USB 3.0

1 x USB (Type A), 2 x USB ( Header 2 x 10 2.0mm)
PMBUS

1 x PMBUS ( Header 1 x 5 2.54mm)
JI2C

1 x I2C (Header 1 x 3 2.54mm)
USB3.0

2 xUSB3.0 (1 xType A、1 xType C)
COM

1 x COM (Header 2 x 5 2.54mm) ，4 x COM (Header 2 x 5 2.0mm，SIO扩展)
USB3.0

2 xUSB3.0 (1 xType A、1 xType C)
FAN

7 x PWM FAN（2 rear, 5front）
SGPIO

2 x SGPIO (Header 2 x 4 2.54mm)
GPIO

8 x GPIO (Header 2 x 5 2.54mm)
TPM

1 x TPM
JFP

JFP1 Header（2 x 8 2.54mm) , JFP2 Header（2 x 5 2.54mm,外部统一控制主机用)
Manage
IPMI

ASPEED AST2400 BMC，Support for Intelligent Platform Management Interface v.2.0，IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Network
Network Controllers

1 x Realtek RTL8211E PHY (dedicated IPMI)
Network Controllers

2 x I210AT
Processor
CPU

2nd Gen Intel® Xeon® Scalable Processors， Dual Socket LGA-3647 (Socket P) supported, supports Up to 205W TDP
Chipset

Intel® C621
BOIS

256Mb UEFI
Storage
M.2

1 x M.2（NVME）
SATA

8 x 7Pin SATA3
System Power Supply
Power Input

24Pin ATX，CPU 8Pin x 1 ，4Pin x 1
System Type
Memory Type

2933/2666/2400/2133MHz ECC 3DS DDR4 LRDIMM, RDIMM
Memory Capacity

6 x DDR4 DIMM slots（6 channel），Up to 768GB 3DS ECC LRDIMM, DDR4-2933MHz;
DIMM Sizes

LRDIMM: 64GB, 128GB | RDIMM: 64GB, 128GB
